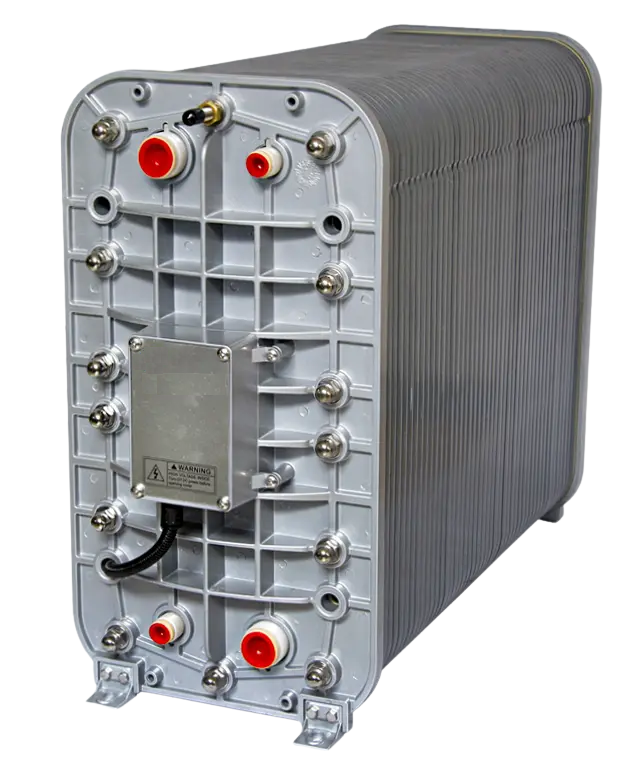

MavDex 4234

       Model No:54HJ2

       Part No:435X9

Evolved for the Better
 MavDex 4234 Pump (EDI) generate mixed bed deionized water through electrodeionization in oilfield and refinery, and are specifically designed for refinery and oil field applications.

MavDex 4234 pump (EDI)consistently deliver maximum reliability and superior performance for power, HPI/CPI, general electronics and laboratory applications without regeneration downtime.
 Specifications
■ Product Flow min. gpm (m3/hr) 2.0 (0.44)
■ Product Flow nominal gpm (m3/hr) 3.5 (0.64)
■ Product Flow max. gpm (m3/hr) 4.0 (0.78)
■ Product Weight lbs(kg) 364(165)■ Product Weight lbs(kg)660(300)

MavDex 4234 Pump Model No:54HJ2 Part No:435X9

Features

■ Cost effective CPVC spacers for oilfield and oil refinery EDI.

■    Double O-ring seal guarantees  leak-free operation.

■ Generate mixed-bed quality deionized water without the use of chemicals.

■ No need for acid/caustic, neutralization system or exchangeable DI tanks.

■ Continuous production instead of batch, with consistent quality.

■ Superior electrical isolation.

■ 100 psi (7 bar), 113˚F (45˚C) continuous operation.

■ Proprietary all-filled concentrating compartments eliminate recirculation pump and brine injection.

■ Significantly lower operating costs, than conventional ion exchange.

  Operational Data

Operating Environment

■     Installation should be indoors with no direct sun light and should have a maximum ambient room temperature of 113˚F (45˚C).

Quality Assurance Standards

■    CE marked. Each module is factory tested to meet strict industry standards and is manufactured in an ISO 9001 and ISO 14000 quality and environmental management system.
